Feed in size	0-50 MM
Capacity	100 – 600 TPH
Application	Widely used in metallurgy, construction road, railway and commercial concrete industry sand and gravel aggregates.
Scope of Application	It is suitable for crushing soft and medium hard ores for primary or fine crushing operations, such as granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

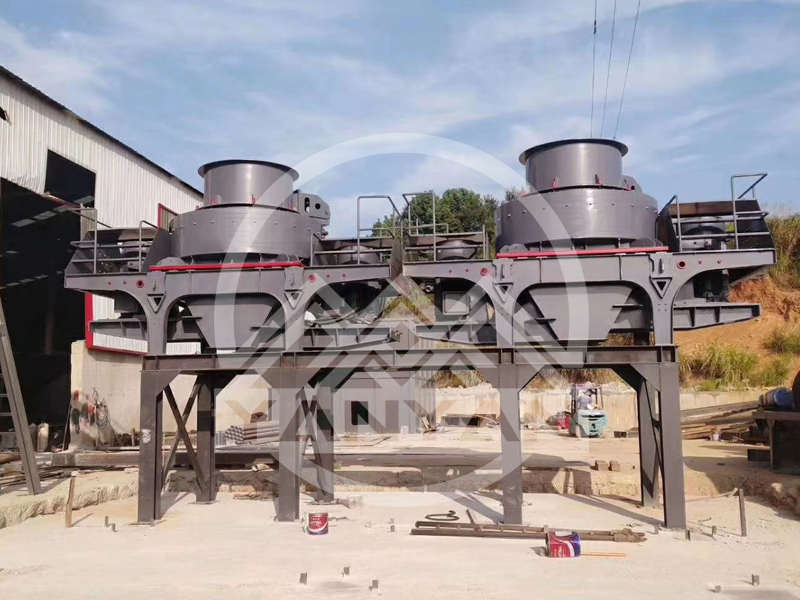

Machine Introduction	Due to the increasing market demand for the scale, intensification, energy conservation, environment protection and high-quality machine-made sand, YANYAN MACHINERY as a Chinese professional sand maker manufacturer, further optimizes the structure and function of traditional vertical-shaft impact crushers and launches a new generation of sand-making and reshaping machine with high efficiency and low costs --- VSI6X Sand Making Machine. Product Features: Lower maintenance costs, longer service life of vulnerable parts, bigger capacity.
Working Principle	VSI6X Sand Making Machine (also known as "Sand Maker") has two feed modes – "feed at center" and "feed at center & sides". As for the former mode "feed at center", materials at the feed hopper firstly pass through the central hole into the high-speed spinning rotor. In the rotor, materials are fully accelerated and thrown outwards from the launching port to collide with a part of materials that freely fall after rebound. Next, materials hit the surrounding vortex material liner (or the impact block) inside the vortex chamber together. In the chamber, materials are bounced to the top of crushing chamber firstly and then change their direction by moving downwards to form a material curtain with materials emitted from the runner of impeller. Finally, finished products are discharged from the bottom discharge opening. As for the latter mode "feed at center & sides", firstly, materials at the feed hopper pass through the circular hole. Then, materials are divided into two parts by the distributing tray. One part of materials enter the high-speed rotating impeller while the other part of materials fall from all sides of the tray. Materials in the impeller would be accelerated rapidly and thrown outwards at a high speed to collide with materials falling from all sides of the tray. Next, all materials hit the surrounding vortex material liner (or the impact block) inside the vortex chamber together. In the chamber, materials are bounced to the top of crushing chamber firstly and then change their direction by moving downwards to form a material curtain with materials emitted from the runner of impeller. Finally, finished products are discharged from the bottom discharge opening.



Performance

"Rock On Rock" And "Rock On Iron" Crushing
In order to meet the crushing demand of different customers, VSI6X Sand Making Machine takes two crushing methods--- "rock on rock" and "rock on iron"(which refer to "rock hitting rock" and "rock hitting iron" respectively). The material liner of "rock on rock" and counter block structure of "rock on iron" are designed specially according to the working condition of the sand-making machine, which greatly promotes the crushing ratio of the sand maker.


New Structural Designs of Key Parts
In order to ensure the overall performance of the sand making machine, key parts on it is optimized on their structures, such as the impeller, the bearing cylinder and the main body. Several national patent technologies owns ensure the high yield, high efficiency and low cost of the crushing machines in crushing operation.

Lower Costs in Usage and Maintenance
VSI6X Sand Making Machine is optimized on some structures and crafts of the impeller. The service life of some wearing parts is prolonged by 30~200% compared to the previous crushing machines under the same usage conditions. VSI6X Vertical-shaft Sand Maker is configured with simple lifting device. When the sand maker needs maintenance, the lifting of the impeller and the bearing cylinder needs no extra-large lifting devices, greatly lowering the maintenance difficulty of the sand maker.


Safer and More Reliable Operation
When designing this sand making machine, the safety and reliability are taken into consideration. The more stable and reliable dual-motor drive and automatic diluted oil lubrication are adopted and at the same time, the gunk and the maintenance platform are optimized to ensure the safety and reliability of operation.


Model	Sand making	Reshaping
	Max. Feeding Size MM
VSI6X-8015	30	40
VSI6X-9026	35	45
VSI6X-1040	40	50
VSI6X-1150	45	55
VSI6X-1263	50	60



Model	Sand making	Reshaping
	Passing capacity TPH
VSI6X-8015	109-117	131-210
VSI6X-9026	167-179	200-323
VSI6X-1040	264-283	317-515
VSI6X-1150	344-368	413-663
VSI6X-1263	454-486	545-872



Model	Speed R/MIN	Power KW	Overall dimension MM
VSI6X-8015	1300-1700	75KW*2	4100*2300*2750MM
VSI6X-9026	1200-1500	132KW*2	4200*2400*3150MM
VSI6X-1040	1100-1400	200KW*2	4880*2560*3725MM
VSI6X-1150	1000-1300	250KW*2	5500*2750*3950MM
VSI6X-1263	900-1200	315KW*2	5700*2980*4190MM
